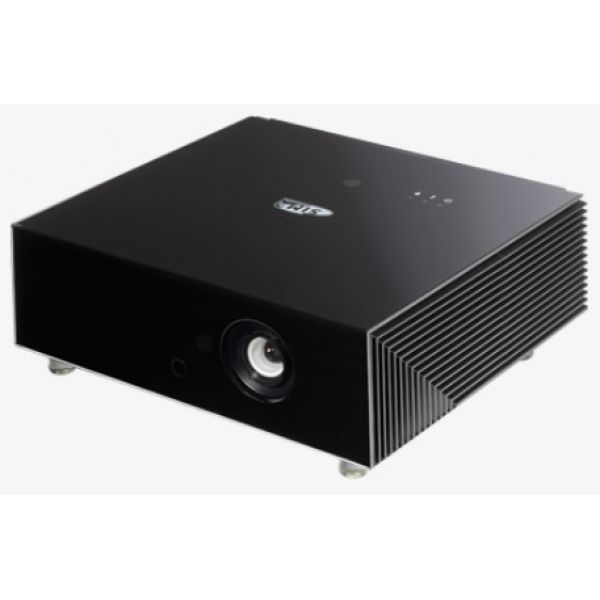

Sim2 CRYSTAL4 4K

Enjoy the excellent picture quality of SIM2’s single- Key Features

chip DLP®-based projector: UHD (Ultra High Definition) images with the all-new SIM2 CRYSTAL4

UHD HDR projectors.

Featuring Texas Instruments’ DLP® 4K UHD chipset, SIM2 CRYSTAL4 UHD HDR

delivers exceptional 4K images, high brightness (up

to 2200 ANSI lumen light output) and an accurate,vibrant color palette.

The SIM2 CRYSTAL 4 UHD HDR features a stylish

‘made-in-Italy’ design: a distinctive, contemporary

cabinet enriched by a luxurious crystal finish by

designer Giorgio Revoldini.

Designed for use with mid-size Home Theater and

media rooms.

LIGHT ENGINE

DLP® Type and image resolution: 1-chip DMD 0.67” UHD

Image Resolution: 4K UHD (3840x2160 pixels): 8.3M pixels

Dynamic Range: HDR compliant for precise natural colors

Color Wheel: 6 segments (RGBRGB)

Lens: High definition pure-glass lens optics

Light Source and brightness(1): 300W lamp (dimmable) up to 2,200 Ansi Lumens

INSTALLATION

Lens Throw ratio (+/-5%): 1.4-2.0:1

Zoom & Focus:    Manual

Projection angle: 12 degrees

Optical Shift: +/-15% Vertical

INPUTS/OUTPUTS:

2x HDMI (v.2.0a -  HDCP 2.2)

1x HDMI-MHL (v.2.0a -  HDCP 2.2)

1x USB (A type - power)

1x mini USB (B type for FW upgrade)

1 x RS232 (D-sub 9 pin)

2x IR receivers

1x wired IR receiver

1x Audio IN (mini-jack)

1x Audio OUT (mini-jack)

ELECTRONICS AND GENERAL SPECIFICATIONS

Vertical scan freq.: 24-30 Hz/47-120 Hz

UHD: @ 24/25/30/50/60 Hz

Mains voltage range: 100-240 +/-10% (50/60 Hz)

Power consumption: 410W (normal mode), <0.5W (stand-by)

Projector weight:  17 Kg

Projector dimensions (WxHxD): 450 x 181 x 420 mm  - lever feet included in height

Cabinet finish: Black or White crystal-glass
