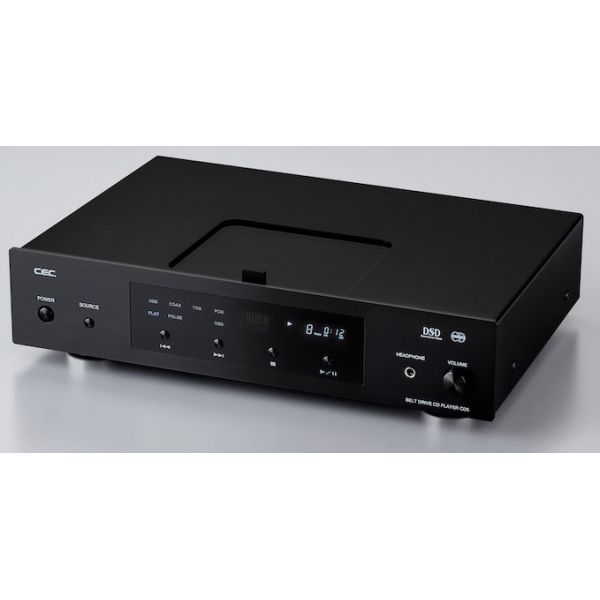

C.e.c. Leitor CD5 com Dac/amp.headphone Black

ESS  DAC  CHIP :

The conversion from digital to analog signal is performed by the

ESS Hyper stream DAC chip ES9018K2M which is compatible up to 32-bit/384kHz signals.

In addition signals through ES9018K2M go through original full-balanced

circuit to achieve dynamic and musical reproduction of music.

CEC CD 5 offers two different digital filters, “FLAT”, a standard filer with

super linear frequency response to 20kHz, and “PULSE”, a ringing-free

pulse-optimized filer with a softer roll-off below 20kHz.

You may select easily by the remote control.

DIGITAL INPUTS :

SPDIF input is compatible up to 24bit/192kHz by COAXIAL and TOSLINK terminals.

USB input for the connection to PC is compatible up to

PCM 32bit/384kHz and DoP reproduction at DSD128/5.6MHz.

ANALOG OUTPUTS :

Both connections are available. Conventional type RCA output,

and XLR output terminal for balance connection.

DIGITAL OUTPUTS :

Two outputs are available: COAX and TOSLINK.

LARGE DISPLAY :

A large VFD monitor indicates input status, condition of digital filter,

and the input sampling frequency. Independent FL display shows the

condition of the performance of CDs.

Three steps may dim the brightness of display.

Specifications :

Drive System: Belt Drive // Spindle

Playable Discs: ÁUDIO CDs & Finalized CD-R/RWs

Power Supply: AC 120V/230V/ 50-60Hz

CD Stabilizer: Diameter 70mm, Weight 330g (Brass)

Digital Input: COAXIAL x 1: SPDIF 24bit/32 to 192kHz, TOSLINK x 1:

SPDIF 24bit/32 to 192kHz, USB2.0 x 1: PCM 32bit/32 to 384kHz,

DSD2.8224 to 5.6448MHz

Digital Output: COAXIAL x 1: 0.5Vp-p/75Ω, TOS x 1: -21 to -15dBm EIAJ

Analog Output: Balanced XLR (pin2=hot) x 1 / 4Vrm, Unbalanced RCA x

1 / 2Vrms, Headphone 6,3mm x1 - front

DAC: ESS ES9018K2M x 1

Digital Filter: FLAT / PULSE (switchable)

Frequency: 20Hz to 20kHz, ±0.1dB (CD playback)

S/N ratio: 105dB, 1kHz/0dB

Cross talk: 105dB, 1kHz/0dB

THD: 0.016%, 1kHz/0dB

Consumption: 17W

Dimensions: 435(W) x 335(D) x 109(H)mm

Weight: approx. 10 kg

Color: Silver or Black
