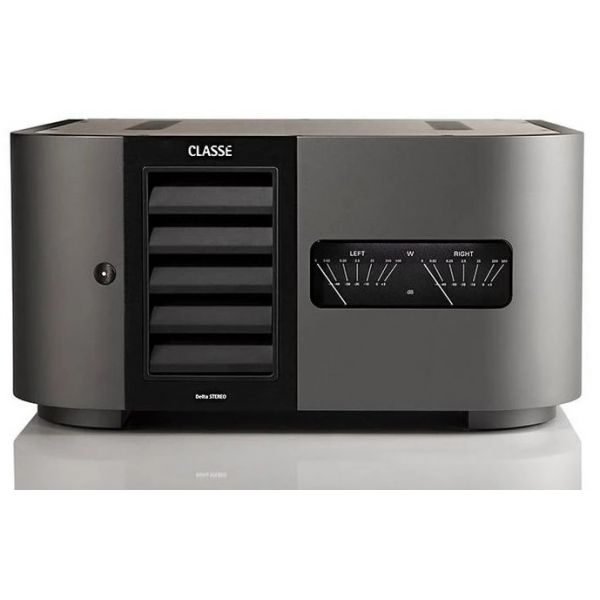

Classé Amplificador Delta Stereo

2 x 12,5W a 8 Ohms em Pura Classe A

2 x 250W a 8 Ohms

Frequency Response  (-3dB, 50Ω source impedance)   1Hz – 650kHz

Continuous Output Power (at 1kHz, 0.1% THD+N) :

12.5W / 8Ω delivered in pure class A operation

250W / 8Ω

500W / 4Ω (with AC line held constant)

350W / 2Ω (with AC line held constant)

Harmonic Distortion (measurement bandwidth: 500kHz, 25Vrms in 4Ω or 8 Ω)

Harmonic Distortion (measurement bandwidth: 90kHz, 25Vrms in 4Ω or 8 Ω)

Peak Output Voltage (nominal AC line) :

129Vp-p into 8Ω

138Vp-p no load

Input Impedance   (at 1kHz, BAL / SE)    82kΩ

Voltage Gain (at 1kHz, BAL / SE)  29dB

Intermodulation Distortion (SMPTE 4:1) (8Ω or 4Ω, BAL / SE)

Intermodulation Distortion (CCIF) (8Ω or 4Ω, BAL / SE)

Signal-to-Noise Ratio (A wtd in parenthesis) (22kHz BW)   118dB (120dBA)

Crosstalk (one channel driven to 250W / 8Ω) :

124dB (100Hz), 107dB (1kHz),

90dB (10kHz)

Slew Rate   75V / μs

Output Impedance :

0.009Ω (100Hz), 0.009Ω (1kHz),

0.012Ω (10kHz)

Damping Factor (at 1kHz, ref 8Ω)   850

OVERALL DIMENSIONS :

Width   444 mm

Depth   492 mm

Height   222 mm

WEIGHT :

Gross Weight   52.8 kg

Net Weight     46.4 kg
