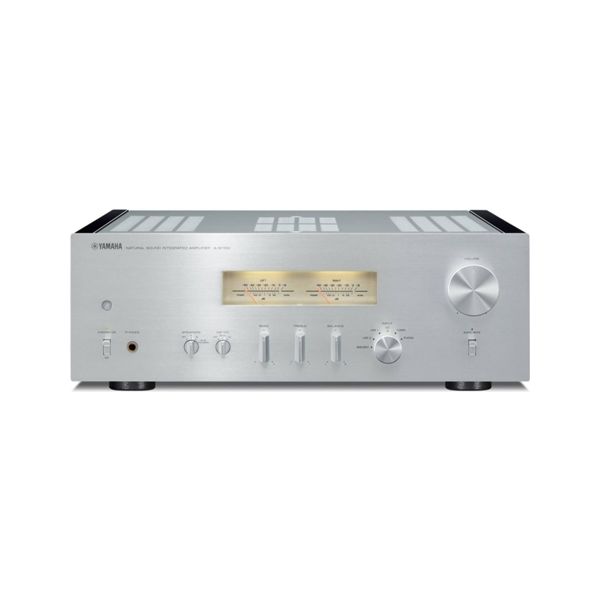

Yamaha A-S1100 Silver

A-S1200 Acknowledging the golden era of Hi-Fi with the level meters and beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.High Quality Components delivering exceptional musical expressionToroidal power transformer with enormous energy for a pure musical soundGorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi eraFloating Balanced Power AmplifierMechanical ground concept maximises rigidity for expressive and rhythmic bassA-S1200SpecificationsMaximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)160 W + 160 WHigh Dynamic Power/Channel (8/6/4/2 ohms)105/135/190/220 WDamping Factor≧ 250 (1 kHz, 8 ohms)Frequency Response+0 / -3 dB (5Hz-100kHz) , ＋0 / -0.3 dB(20 Hz-20 kHz)RIAA Equalization Deviation＋/-0.5 dB (PHONO (MM/MC))Dimensions (W x H x D)435×157×463 mm; 17-1/8 x 6-1/8 x 18-1/4 Weight22.0 kg; 48.5 lbsReceiver / Integrated Output Power[20 Hz-20 kHz, 0.07% THD] 90 W ＋ 90 W (8 ohms), 150 W ＋ 150 W (4 ohms)Total Harmonic Distortion (20Hz to 20kHz)[Input 0.5 V] PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc.→SP OUT: 0.035% (50 W/8 ohms）Signal-to-Noise RatioPHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dBInput Sensitivity[1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohmsTransformer625VA (Toroidal)
