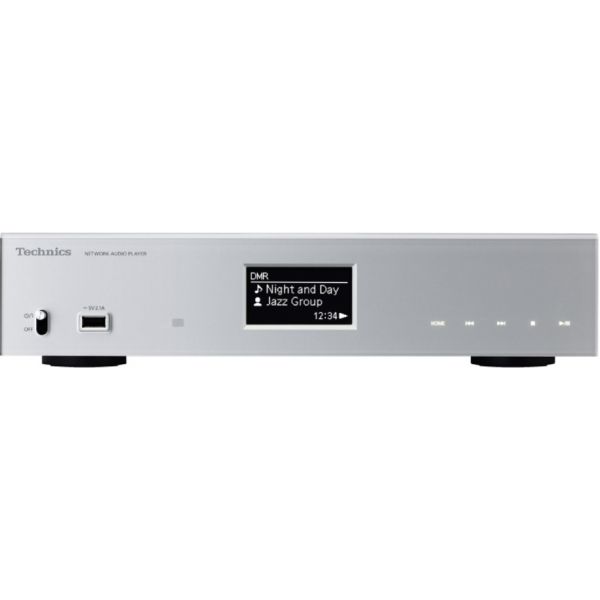

Technics ST-C700EG-S

Noiseless Signal Technology :

Digital Noise Isolation Architecture

Virtual Battery Operation

Ultra Low Distortion Oversampling Digital Filter

High Res Re-master

Optimally Activated Circuit System

High Quality Analogue Circuit

High Rigidity Metal Double Chassis

Technics Definitive Design :

High Rigidity Aluminium Cabinet

Touch Switch Control

Symmetric Structure

Frequency Response 2 Hz - 90 kHz (-3 dB)

Dynamic Range (IHF-A) 112 dB

Signal to Noise Ratio (IHF-A) 112 dB

THD+N 0.0012 % (1 kHz, 0 dB)

Digital Input Terminal USB-A, USB-B

USB-A :

iPod/iPhone/iPad

Support Codec :

WAV  (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)

FLAC (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)

DSD  (2.8224 MHz, 5.6448 MHz)

AIFF (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)

ALAC  (32, 44.1, 48, 88.2, 96 kHz / 16, 24 bit)

AAC   (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)

WMA   (32, 44.1, 48 kHz / 16-320 kbps)

MP3   (32, 44.1, 48 kHz / 16-320 kbps)

USB-DAC (USB-B) :

USB Audio Class Specification USB Audio Class 2.0, Asynchronous Mode

Support Codec :

DSC  (2.8224 MHz, 5.6448 MHz)

PCM  (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24, 32 bit)

DLNA Support Codec :

WAV  (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)

FLAC (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)

DSD  (2.8224 MHz, 5.6448 MHz)

AIFF  (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)

ALAC  (32, 44.1, 48, 88.2, 96 kHz / 16, 24 bit)

AAC   (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)

WMA   (32, 44.1, 48 kHz / 16-320 kbps)

MP3   (32, 44.1, 48 kHz / 16-320 kbps)

Analogue Output Terminal LINE x 1

Digital Output Terminal Coaxial Digital x 1, Optical Digital x 1

Ethernet interface LAN (100 Base-TX/10 Base-T)

System Port System Control Input/Output (Φ3.5 mm Jack)

Airplay

Bluetooth (Support codec) (aptX Low Latency, AAC, SBC)

NFC (Near Field Communication)

Tuner DAB/DAB+/FM

Power Supply AC220-240 V, 50 Hz/60 Hz

Power Consumption 26 W

Dimensions (W x H x D) 340 x 78 x 305 mm

Weight Approx. 4.0 kg

Accessories Remote Control, AC Cord, Coaxial Digital Cable,

Control Cable, Operating Instructions
