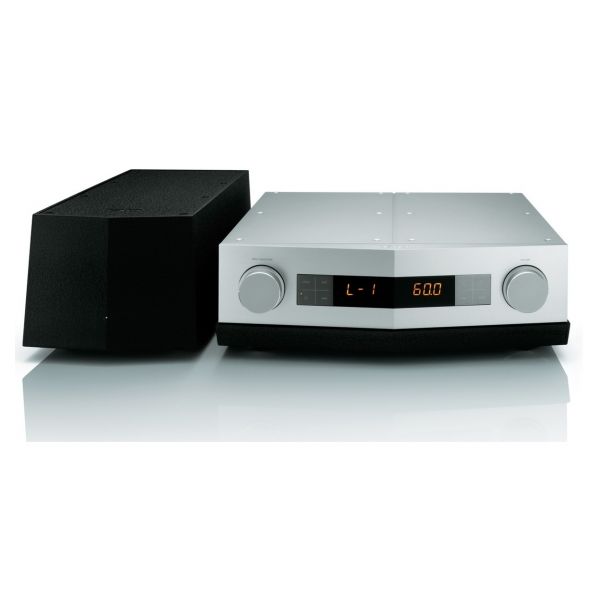

TAD Pre Amplificador C600

Mute

Display Off

Mode setting: fine volume adjustment, volume display mode switching,

L/R balance adjustment, input level setting, auto power down setting

Input terminals  balanced input × 3, unbalanced input × 3

Output terminals  line : balanced output × 2, unbalanced output × 2

recording : balanced output × 1, unbalanced output × 1

Rated output voltage  balanced output 1.5 V, unbalanced output 0.75 V

Maximum output voltage  balanced output 20 Vrms, unbalanced output 10 Vrms

Rated distortion  0.0015% (balanced output, 1.6V, 1kHz)

SN ratio  120 dB (IHF-A, short circuit)

Frequency response  10 Hz?100 kHz??1 dB?

Gain  12 dB

Max.allowable input voltage (Vol. -40 dB):  20 V (balanced), 10 V (unbalanced)

Power supply voltage  AC 220 V to 240 V, 50 Hz /60 Hz (Europe, Asia)

Power consumption  52 W

Standby time power consumption  0.5 W or less

Exterior dimensions:

main amplifier : 450 mm (W) × 150 mm (H) × 440 mm (D)

Power supply : 220mm (W) × 185 mm (H) × 430 mm (D)

Weight

main amplifier : 29 kg

power supply unit : 15 kg
