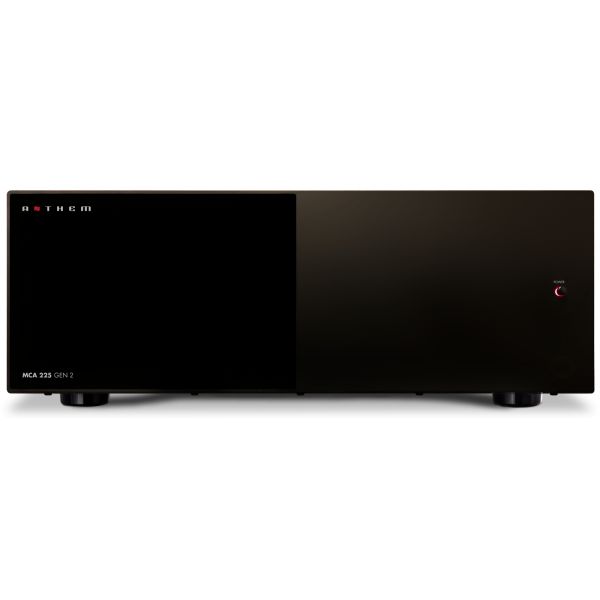

Anthem Amplificador de Potência MCA 225 v2

225W in 2-Channels

Delivers lower THD (Total Harmonic Distortion) for cleaner, pure sound and lower noise

Completely redesigned for improved ÁUDIO performance and reliability

Higher current output for lower distortion

Cosmetic match for AVM 60 A/V Preamplifier-Processor

Improved Advanced Load Monitoring system

8 bipolar output devices per channel for less stress on each device

Less than 2 watts standby power consumption

Crafted in Canada

-

POWER OUTPUT  (Continuous RMS, 20 Hz - 20 kHz,

Impedance 8Ω    225 W

Impedance 4Ω    400 W

Impedance 2Ω    600 W

-

INPUTS / OUTPUTS

InputsSingle-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack)

OutputsSpeaker Binding Posts, Relay Trigger (3.5-mm Mono Jack)

-

SWITCHES

Front PanelPower (On/Off)

Rear Panel3 On/Off Modes (Trigger, Manual, Auto)

-

THD AT 100W

at 1 kHz0.0010%

at 20 kHz0.015%

-

IMD AT 100 W

ITU-R (19 kHz + 20 kHz)0.0005%

SMPTE (60 Hz + 7 kHz)0.002%

-

FREQUENCY RESPONSE, 20 HZ TO 20 KHZ

open circuit± 0.1 dB

8Ω± 0.1 dB

4Ω± 0.1 dB

2Ω± 0.2 dB

-

OTHER SPECIFICATIONS

SNR, IEC-A, ref. 225 W120 dB

Power Bandwidth, -3 dB at 200 W into 8 ohms90 kHz

Slew Rate30 V/μs

Damping Factor, 20 Hz to 1 kHz300

Channel Separation, 100 Hz to 10 kHz>65 dB

Input Impedance (RCA / XLR)10 kΩ / 15 kΩ

Input Sensitivity, 225 W into 8 Ω1.5 Vrms

Voltage Gain29 dB

-

DIMENSIONS

Height16.9 cm

Height with Rackmount Kit  4U

Width43.9 cm

Depth46 cm

WEIGHT  18 kg
