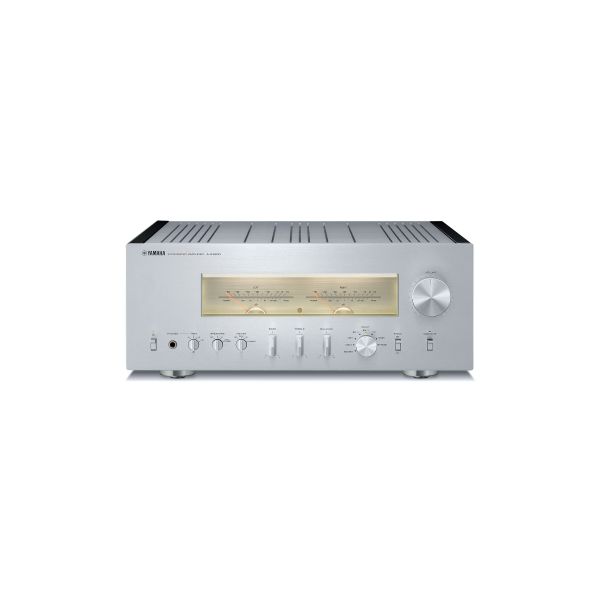

Yamaha Amplificador A-S3200, Prata

Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)   170 W + 170 W

High Dynamic Power/Channel (8/6/4/2 ohms)     120/150/200/300 W

Damping Factor     ? 250 (1 kHz, 8 ohms)

Frequency Response     +0 /-3 dB (5 Hz-100 kHz), ?0 / -0.3 dB (20 Hz-20 kHz)

RIAA Equalization Deviation      ?/-0.5 dB (PHONO (MM/MC))

Dimensions (W x H x D)      435×180×464 mm

Weight        24.7 kg

Receiver / Integrated Amplifier :

Rated Output Power

[20 Hz-20 kHz, 0.07 %THD] 100 W ? 100 W (8 ohms), 150 W ? 150 W (4 ohms?

Total Harmonic Distortion (20Hz to 20kHz)

[Input 0.5 V] PHONO MC→LINE2 OUT: 0.02 % (1.2 mVrms), PHONO→LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL1,2 →SP OUT: 0.035 % (50 W/8 ohms)

Signal-to-Noise Ratio

PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL1,2: 114 dB

Input Sensitivity

[1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL1,2: 200 mVrms/100 kohms

Transformer    623 VA (Toroidal)
